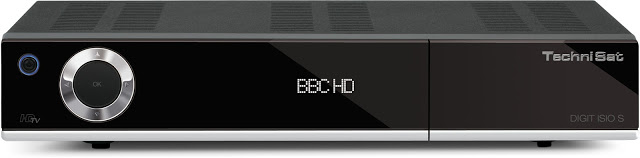

TechniSat DIGIT ISIO S 0006/4753 – INTERNATIONAL EDITION – black

High Defenition Digital Satellite Receiver

TechniSat DIGIT ISIO S Receiver Software, Tools

TechniSat DIGIT ISIO S Receiver Software, Tools

TechniSat DIGIT ISIO S Receiver Software, Tools


Technical Data

EAN4019588647534 Item no.0006/4753
Weight1.6 kg Weight (Box)2.6 kg
Device (W x H x D)31.00 x 5.20 x 20.00 cm
Colourblack Box37.00 x 15.20 x 26.50 cm

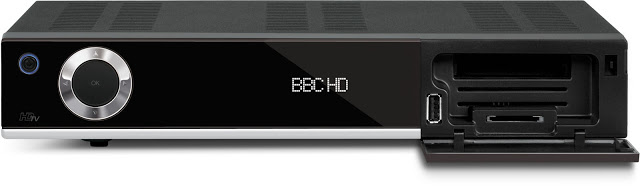

Card reader


SD card1

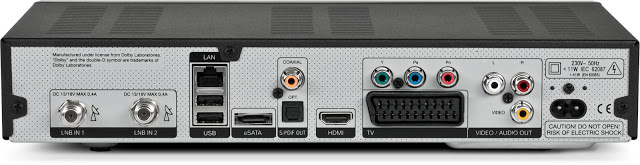

Connections


HDMI (out)1 eSATA1 Common Interface Plus (CI+)2
Smartcard reader2
Digital electric audio output1
Digital optical audio out1
Audio out analogue1 (rechts / links) YUV (component output)1
Scart1 Video Cinch out1 Ethernet 10/100 (RJ-45)1 F socket2
Decryption system


Conax  CI+
Environment


Humidity10 … 75 % Ambient temperature5 … 35 °C
Hotel mode


Protected access to hotel mode
Customisable start screen
Lockable volume
Menu locking
Control panel lock
Integrated LED clock
Selectable start source
Selectable start channel
LNB


Vertical power supply14 V Horizontal power supply18 V
 LNB modulation22 kHz LNB power supplymax. 400 mA (kurzschlussfest) DiSEqC1.0 / 1.2
Other features


Total programme memory5000 Sleep timer  Alarm
OSD languagesGerman, English, French, Italian, Dutch, Norwegian, Polish, Portuguese, Russian, Slovakian, Swedish, Spanish, Czech
Picture functions


Picture in Picture (PIP) (2 x SD, 1 x SD u. 1 x HD) Freeze frame  Zoom
Power consumption


Standby fast start6.5 W Standby LED< 0.2 W In operation11.05 W
Power supply


Nominal voltage230 V Frequency50 Hz Mains adapterinternal
sonstiges


USB3 (USB 2.0)
Supported formats & codecs


Audio-FormatsMP3, AAC, M4A, MP2 Picture-FormatsJPEG Video-CodecsMPEG-4, MPEG-2, MPEG-1, H.264, DivX Video-FormatsMP4, MKV, MOV, TS, TS4, VOB, WMV, Xvid, AVI
TechniSat CONNECT


Control  SFI
Tuner


Tuner typeDigitalSat Reception on
HDTV (MPEG-4 & 2), SD (MPEG-2)
Input impedance75 O Demultiplexinggemäß ISO 13818-1
DVB-S tuner2 Reception range950 … 2150 MHz Viterbi rates1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) DVB-SQPSK DVB-S2 … 45 Mbaud
DVB-S28PSK-QPSK DVB-S210 … 31 Mbaud FECViterbi and Reed-Solomon
Tuner (DVB-S)


Single Cable Solution (SatCR)SCR1 = EN50494


TechniSat DIGIT ISIO S User Manual

TechniSat DIGIT ISIO S Date Sheet

TechniSat DIGIT ISIO S Firmware

Ver_2.57.0.6-2571l 30-12-2016
