Specifications

system resources
Main Processor: 400 MHz CPU-based
Flash Memory: 64MBits
DDR RAM: 1024Mbits
Decoding of MPEG TS A / V
Transport Stream: MPEG-2, MPEG-4 (H.264)
Admission: Max.120Mbit / s
Aspect Radio: 4: 3, 16: 9 Letter Box
Decoding MPEG-2 MP @ ML, MPEG-4 Part 10 / H264
Video Resolution: 720 * 480p / i, 720 * 576p / i, 1280 * 720p, 1920 * 1080p / i
Audio Decoding: MPEG-1 Layer I / II MPEG-2 Layer II, Dolby Digital
Audio Mode: Left / Right / Stereo / Mono
Sampling frequency: 32, 44.1 and 48 kHz

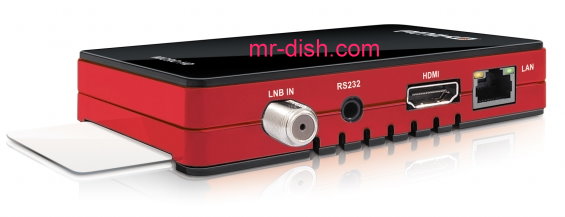

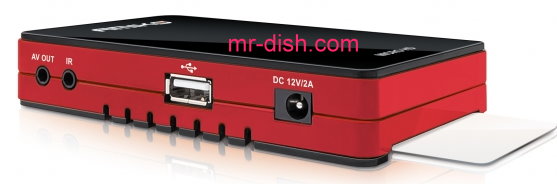

A / V input / output data

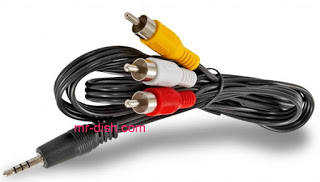

AV OUT: CVBS video output, output L / R audio (connection type)
LAN RJ-45 Ethernet connection
RS-232C: Transfer Rate 115.2Kbps (Jack Type)

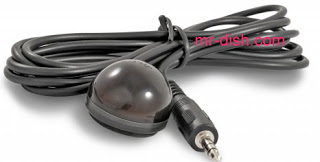

IR IN: External infrared (jack type)
USB: One USB 2.0 slot Compatible

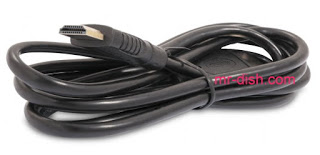

HDMI: VER1.3, Type A, Dolby Digital bitstream
———-

Tuner and demodulation

Tuner Type: DVB-S2
Input Connector: F-type connector, female
Signal level: -65 dBm to -25
LNB Power: Vertical: + 13V / + 14V,
Horizontal: + 18V / + 19V
Max. 350mA
Overload protection
Tone 22K Frequency: 22 ± 1 kHz
Control DiSEqC: version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input symbol rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto
physical specifications

Size [W * H * D]: 75mm * 115mm * 22mm
Net weight: 0.25 Kg
Working temperature: 0 ° C ~ + 45 ° C
Storage: -10 ° C ~ + 70 ° C
Storage Humidity: 5% ~ 95% RH (non-condensing)
