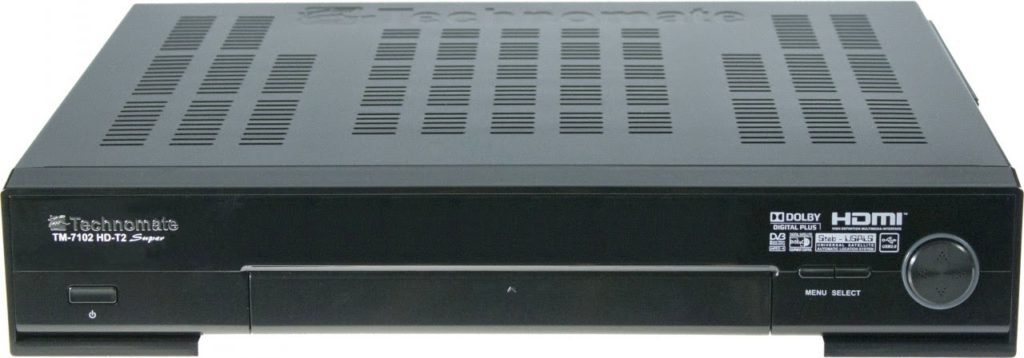

Technomate TM-7102 HD Triple Tuner Software Loader

Fully MPEG-2, MPEG-4 & H.264 compatible
DVB-S, DVB – S2, DVB – T & DVB – T2 complaint
2 x HD Satellite & 1 x HD tuner land
Output resolution: Full HD 1080 p, 1080i, 720 p, 576 p, 576i & 3D Ready *.
2 x smart card readers & 2 x common Interface(CI) slots
HDMI & component YPbPr outputs
Dolby Digital Plus compatible via the S/PDIF outputoptical
10,000 TV & Radio channel memory
Slot of HDD 2.5 “/ 3.5”.
2 ports USB 2.0 PVR Ready (1 x rear, front and 1 x) viaan external USB device: fast forward/reverse, slowforward/Rewind, Timeshift (Pause Live TV) &record scrambled/Free-To-Air (FTA) channels, play filesMp3 & JPEG Viewer
Save up to 3 HD channels and reading a file at thesame time
Channel list & quick software download downloadvia USB 2.0
Vacuum Fluorescent Display (VFD) to display channelnames, status, etc.
Very fast & detailed hardware blind search (powerscan)
2 outputs SCART x with support RGB and CVBS
Super sensitive tuner for signals very weak and weaktransponders
Less than 1 second channel change
DiSEqC 1.0, 1.1, 1.2 & 1.3 (USALS) compatible
PLL modulator type RF (Ch. 21-69) and UHF tuningfunction
Indicator of DiSEqC
Enhanced 16 groups of favorite channel list and thesort function
Car Navigation system – select as many satellites youwant to automatically search
Extended EPG EPG and program reservation
Fast & easy to use menu system
Control channel by: Favorites, lock, Skip, move &Delete
Channel sort by: All, Alphabet, transponder & case
Parental password lock, Installation & receiver
Multilingual OSD menu: English, Spanish, Portuguese,French, Dutch, German, Italian, Turkish, Arabic, Russian,Greek, Czech
Support for multiple audio languages broadcasting
Automatic digital satellite signal detection function
Transponder manual edition
Supports PAL/NTSC systems
Parental control
Last automatic backup function and recall of channel
Various games
Multi-image display
SCPC & MCPC receivable from C/Ku band satelliteLNB supported: universal, unique, single S & Cband broadband LNB
screen formats 4:3 & 16:9
Timer & timer multi-evenement functions
FEC and PID detection and automatic entry of the PIDvalues manual
Pause capture
Loop through the tuner and satellite
Real time clock
Subtitles & OSD and VBI Teletext support
Short circuit LNB on board protection
Software & channel list update via RS – 232 c: PCto STB, STB USB for PC, STB – STB
Consumption power 1W standby option

Date	Version	Software	Loader	User Manual
Apr 2014	1.0.6	Download	USB Upgrade
